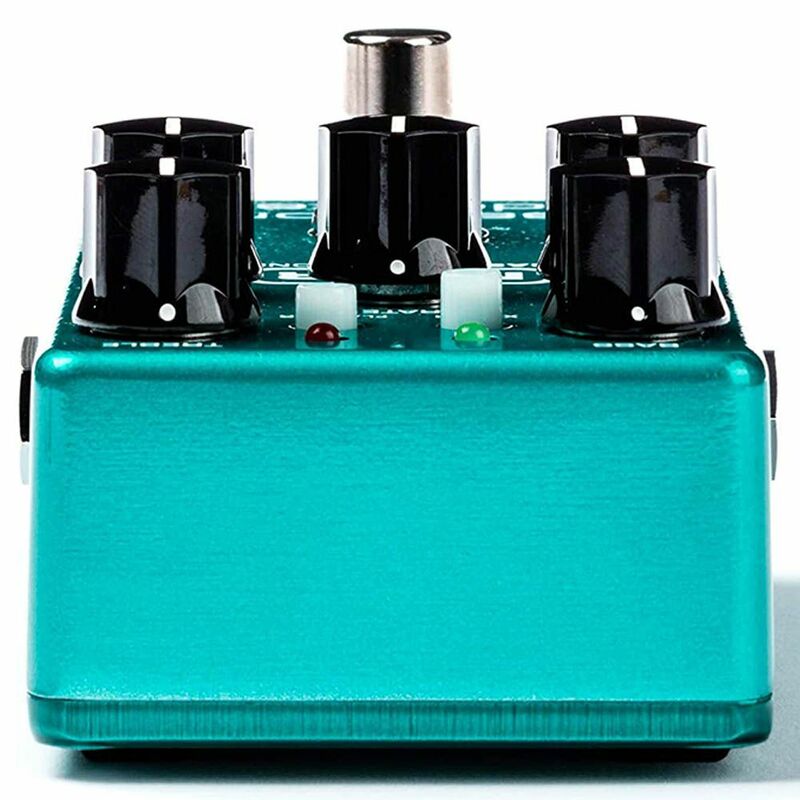

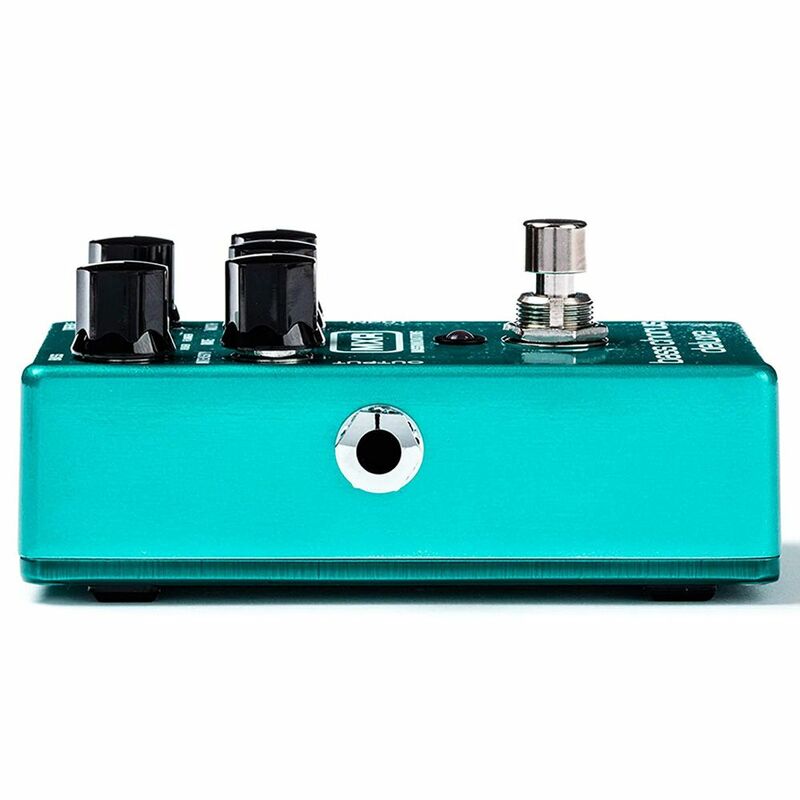

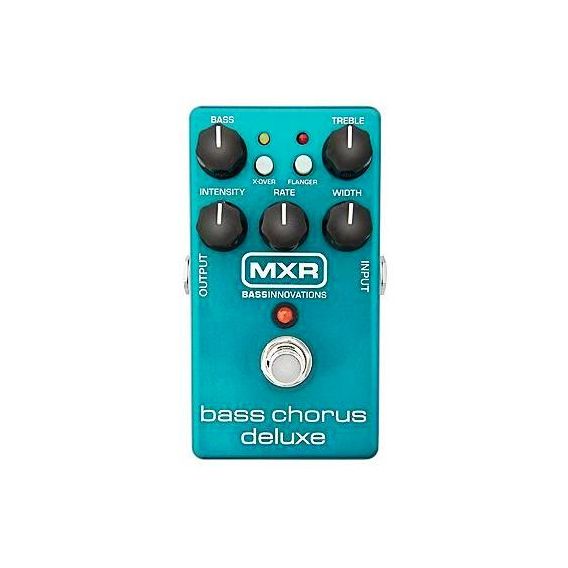

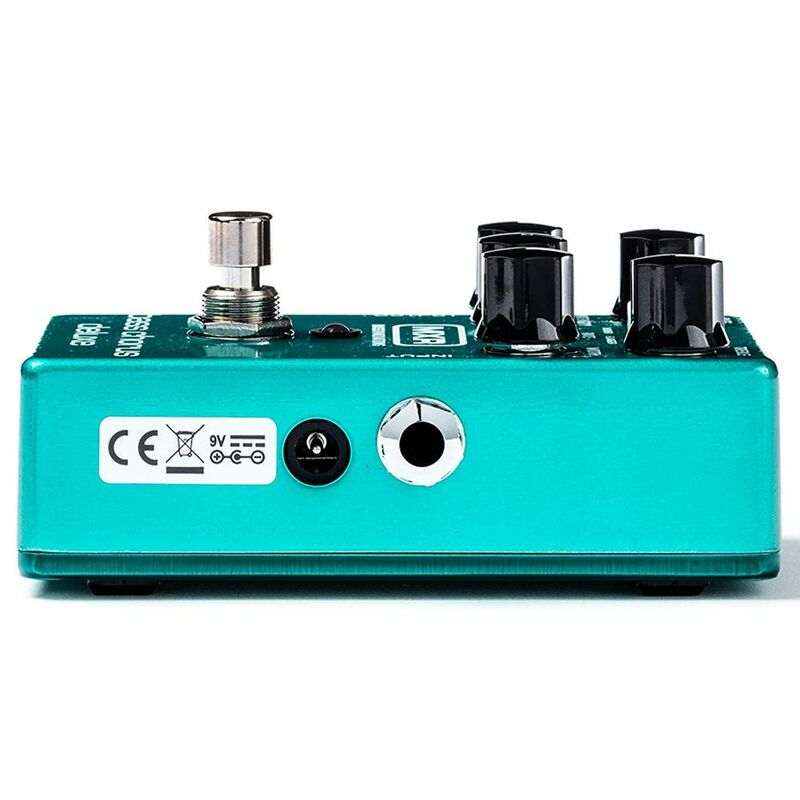

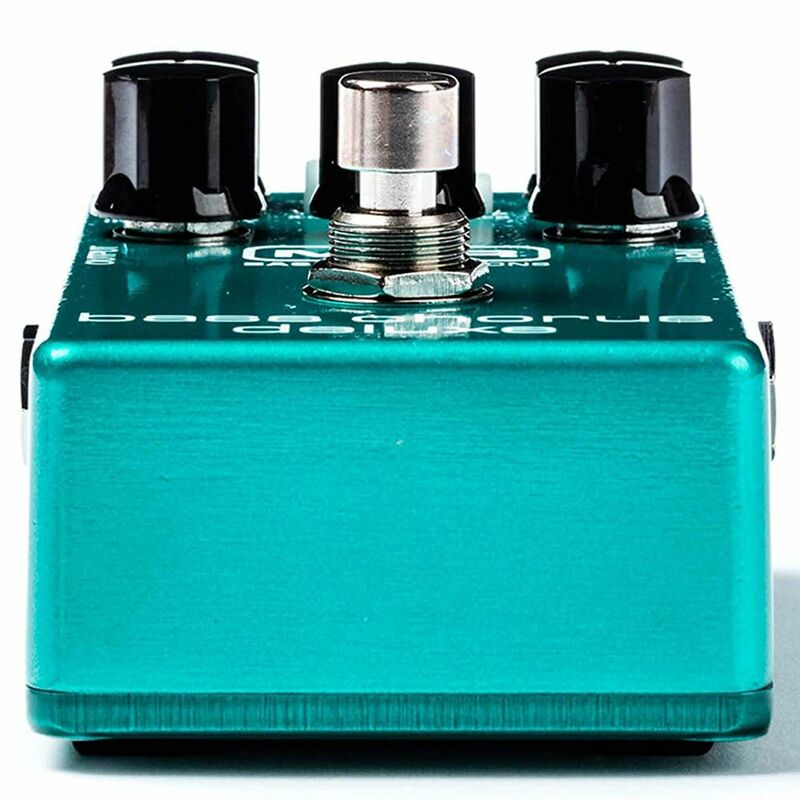

Jim Dunlop MXR Bass Chorus Deluxe Pedal

The Bass Chorus Deluxe delivers analog lush modulated tones with Bass and Treble controls, a Flanger switch, and a X-Over switch for tonal flexibility.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

Input Impedance 2 MΩ
Output Impedance
TIP (Mono) 600 Ω
RING (Stereo) 3.3 KΩ
Max Input Level* 1 kHz/+10 dBV
Max Output Level +13 dBV
Frequency Response
20 Hz to 20 kHz/±1 dB
Signal to Noise Ratio* >96 dBV
Tone Controls (Delay Signal Only)
+8 dB, -11 dB, 100 Hz (BASS)
-2 dB, 100 Hz (Center Position BASS)
±14 dB, 10 kHz (TREBLE)
X-OVER Control
+7.5 dB, 20 Hz/+3 dB, 100 Hz (Dry Signal)
-18 dB, 20 Hz/-3 dB, 160 Hz (Delay Signal)
Rate Control 0.1 Hz to 10 Hz
Maximum Delay Time 12 ms
Minimum Delay Time 400 µs
Delay Noise Reduction 2:1 ratio
Bypass
Mono True Hardwire
Stereo Hardwired
Current Draw 30 mA
Power Supply 9 volts DC
